Function Overview

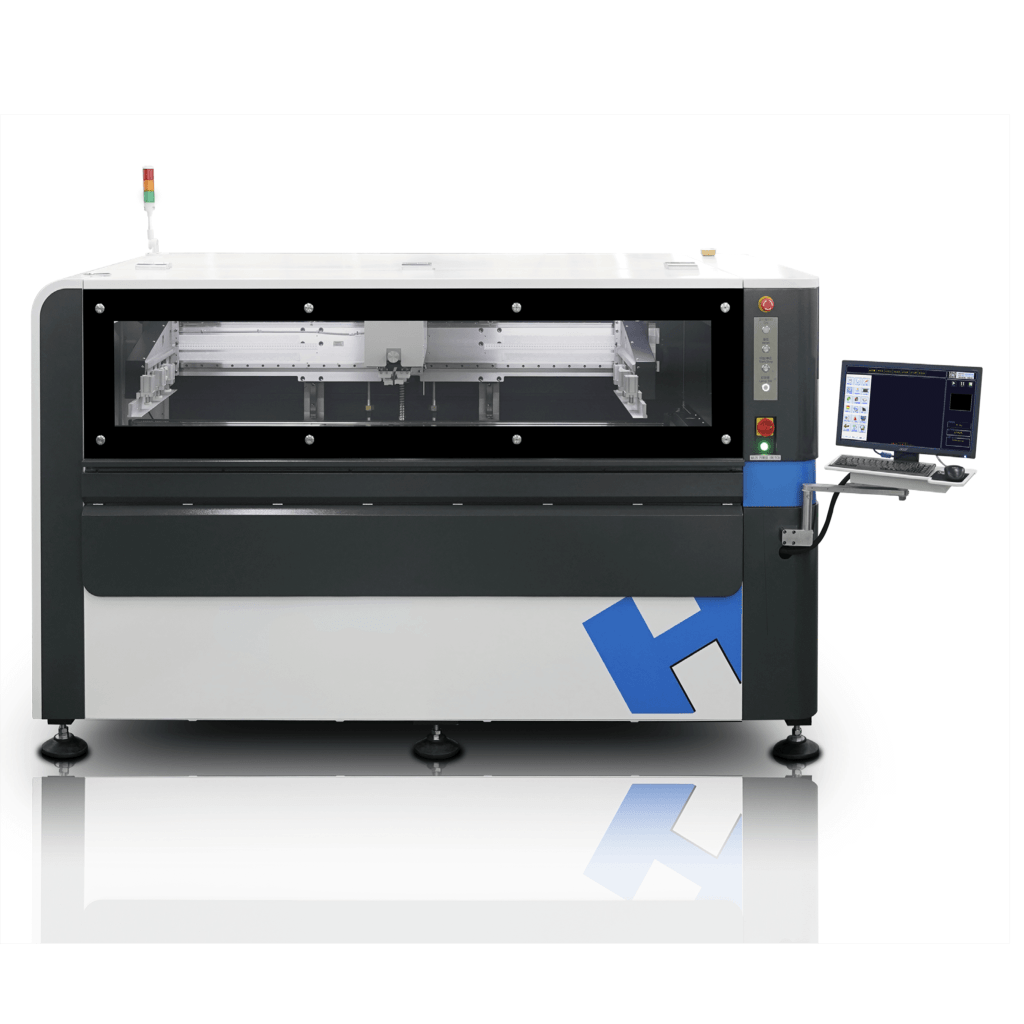

CCXPro30 is a high-speed & high-precision solder paste printer with a repeatability of ±7 μm, a printing accuracy of ±15 μm, and a printing production cycle of 7 seconds (excluding printing solder paste and cleaning). CCXPro30 can handle PCB boards from 50mm × 50mm to 510mm × 510mm and can meet the printing requirements of fine-pitch devices such as 0201 (metric) and Pitch 0.25mm.
Basic features of the product:
2.1. Wide PCB size compatibility range, supporting PCBs of different thicknesses from 50mm × 50mm to 510mm × 510mm; 2.2. High-precision printing;
High positioning accuracy, repeat positioning accuracy ±7μm; Printing accuracy ±15μm; Support glue printing;
2.3. Fully automatic control can improve production efficiency, control quality and save costs;
Automatic steel mesh positioning; Automatic PCB correction;
Fully closed-loop scraper pressure feedback system;
Automatic steel mesh cleaning (3 cleaning methods: dry cleaning, wet cleaning, and vacuum cleaning, which can be used in any combination);
2.4. Adopting the suspended printing head independently developed by Huanchengxin Company and the full closed-loop feedback system of scraper pressure, the pressure control is precise, which can achieve perfect solder paste forming effect;
2.5. The programmable motor controls the separation speed and stroke of the scraper and steel mesh, which can flexibly realize a variety of demoulding methods; 2.6. The multifunctional PCB fixed positioning system makes PCB positioning convenient, fast and accurate;
2.7. Up and down visual positioning system; 2.8. Intelligent image processing system;
2.9, Support 2D, SPI connection, SPC function;
2.10. Printing translation is driven by a motor directly connected to the lead screw.
Solder paste printing range
3.1. Production and processing of SMT components such as resistors, capacitors, inductors, diodes, transistors, etc.:
0201 (metric), 03015 (metric), 01005, 0201, 0402, 0603, 0805, 1206 and other specifications; 3.2, IC: support SOP, TSOP, TSSOP, QFN and other packages, minimum pitch (Pitch) 0.25mm;
Support BGA, CSP packaging, minimum ball diameter (Ball) 0.2mm; 3.3, Printing size: 50mm × 50mm – 510mm × 510mm;
3.4, PCB specifications: thickness 0.4mm – 6mm;
3.5. FPC specification: thickness below 0.4mm (with fixture).
Scope of application
Manufacturing of semiconductors, Mini LED, Micro LED, smart phones, communications, LCD TVs, automotive electronics, medical power equipment, aerospace and other products/equipment, and production of general electronic products.
Product Specifications
*The following test data is based on an ambient temperature of 25 degrees Celsius and 60% humidity.
| project | parameter | ||
| Repeat Position Accuracy | ±7μm(@6σ Cmk≥2.0) | ||
| Printing Accuracy | ±15μm(@6σ Cpk≥2.0) | ||
| Printing speed/cycle (Cycle Time) | <7s (excluding printing and cleaning time) | ||
| Products Changeover | <5Min | ||
| Screen Stencil Size/Min (X×Y) | 370mm × 470mm | ||
| Screen Stencil Size/Max (X×Y) | 737mm × 737mm | ||
| Screen Stencil Size/Thickness | 20mm – 40mm | ||
| PCB Printing Size/Minimum (PCB Size/Min) (X×Y) | 50mm × 50mm | ||
| PCB Printing Size/Max (PCB Size/Max) (X×Y) | 510mm × 510mm, 600mm * 510mm can be customized | ||
| PCB Size/Thickness | 0.4 – 6mm (0.4mm and below require a jig) | ||
| PCB Warpage Ratio | ＜1% (based on the diagonal length) | ||
| Bottom of Board Size | 13mm, 23mm (optional) | ||
| Edge of Board Size | 3 mm | ||
| Transport High | 900±20(mm) | ||
| Transport Direction | left-right;right-left;left-left;right-right | ||
| Transport Speed | 100-1500(mm/sec) Programmable control | ||
| Positioning of PCB
(Board Positioning) |
Support System | Magnetic ejector pins/edge supports | |
| Clamping System | Elastic side clamp/Z-axis pressure plate/vacuum suction | ||
| Print head | Programmable electronically controlled print head (standard) | ||
| Scraper Speed | 10 – 200(mm/sec) | ||
| Scraper Pressure | 0 – 15(kg) (Program control/full closed loop pressure feedback) | ||
| Scraper Angle | 60°/55°/45° (optional) | ||
| Scraper Type | Steel scraper, rubber scraper, other types of scrapers need to be customized | ||
| Stencil Separation Speed | 0.01 – 125 (mm/sec) programmable three-stage control | ||
| Cleaning Method | Dry cleaning, wet cleaning, vacuuming (programmable in any combination) | ||
| Table Adjustment Range | X: ±4mm; Y: ±6mm ; θ : ±2 ° | ||
| Image fiducial type | Standard geometry fiducials, pads/openings | ||
| Camera System | Digital camera/telecentric coaxial vision system/four-way independent coaxial/ring-shaped LED light source | ||
| CCD（Camera） | 5 megapixels, 6.4mm × 4.8mm upper and lower dual fields of view, pixel accuracy 2.7 μm (optional field of view 10mm × 8mm) | ||
| Air Pressure | 4 – 6(Kg/cm2) | ||
| Air Consumption | About 0.007m³/min | ||
| Control Method | PC Control | ||
| Power Supply | AC:220-240V,50/60HZ 1Φ 2.5KW，13A | ||
| Machine Dimensions (L×W×H) | 1250 × 1440 × 1510 (mm) (excluding the lighthouse height, see the product external dimensions) | ||
| Machine weight | Approx :1200Kg | ||
| Operation Temperature | -20℃ – +45℃ | ||
| Operation Humidity | 30% – 60% | ||
Machine Configuration
1. Programmable electronic control to adjust the scraper pressure Suspended scraper printing head:
1.1. The scraper pressure can be adjusted by programmable method, and the pressure can be controlled accurately;
1.2. The front and rear scraper pressures are adjusted independently to ensure that the pressure imbalance caused by the fatigue deformation of the scraper material will not cause the difference in printing between the front and rear;
1.3. Programmable motor controls the separation speed and stroke of scraper and steel mesh;
2. Standard stainless steel scraper, unique design, longer blade life; 3. Visual alignment system;
4. Platform UVW automatic correction system; 5. Steel mesh Y-axis positioning function
6. Digital display of temperature and humidity inside the equipment 7. PCB clamping and supporting device:
7.1, Magnetic ejector pin;
7.2. PCB side flexible clamping device to ensure that the PCB will not bend or deform when clamped; 7.3. Z-axis pressure plate;
7.4, strong vacuum suction;
7.5, Flexible automatic ejector (optional);
8. CNC guide rails adjust the transport width and transport speed;
9. Three programmable steel mesh cleaning systems: dry, wet and vacuum, which can be combined arbitrarily; 10. Industrial control computer, Windows 7 operating system, Chinese/English interface;
11. Intelligent software diagnostic system;
12. Support 2D, SPI connection, SPC software functions; 13. Standard SMEMA connection interface.
