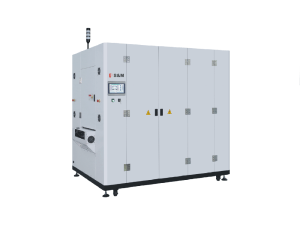

Heavy NG/OK Buffer Stocker

Product number: ZLL-650

  • HMI operation system 、Funcion switching 、Easy to understand.
  • PLC control system,multiple electrical circuit protection design which are security and stability.
  • Suitable for heavy or large product production.
  • Comprehensive multiple functions, first-in, first-out, straight through, NG/OK.
  • Servo positioning system, precise positioning, fast lifting speed and high production efficiency.
  • Standard SMEMA signal communication.

Specifications

Technical Parameters

Description Can be used for NG screening after SMT inspection equipment
Can be used to automatically collect AOI inspection NG/OK circuit boards to different bins
Cycle Time About 12 seconds
Power supply and electric load 220V (AC, SP) 2200VA max

Specifications

Model ZLL-650
Circuit board effective size(mm) 700(L)×650(W)
Transmission height(mm) 900±20(mm)
Dimensions(mm) 1600(L)×1300(W)×1760(H)
Weight(kg) 300(kg)
Maximum number of boards 10
Maximumweight of single product(kg) 10Kg
Layer spacing of product(mm) 60(mm)
