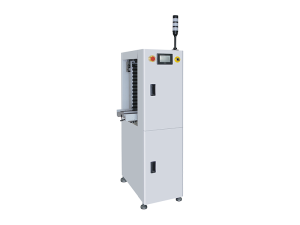

High-speed Magazine Loader

(Model:SL-MSOP8)

  • The mounting device of the circuit board of the SMT production line.
  • PLC control, color man-machine interface operation.
  • The stepper motor pushes the plate structure, and the push plate strength and speed can be adjusted.
  • Servo lifting system, accurate positioning, fast lifting speed, and high production efficiency.
  • Multiple electrical distribution circuit protection, safe and reliable.
  • Sound and light prompt alarm system, abnormal information text prompt, easy operation and maintenance.
  • Standard SMEMA signal communication mode.

Specifications

High-speed Magazine Loader(Model:SL-MSOP8)

一、Equipment Features
1 The mounting device of the circuit board of the SMT production line
2 PLC control, color man-machine interface operation
3 The stepper motor pushes the plate structure, and the push plate strength and speed can be adjusted
4 Servo lifting system, accurate positioning, fast lifting speed , and high production efficiency
5 Multiple electrical distribution circuit protection, safe and reliable
6 Sound and light prompt alarm system, abnormal information text prompt, easy operation and maintenance
7 Standard SMEMA signal communication mode
二、Main specifications & Technical parameters
1 Description It is used for the automatic feeding of circuit boards to the production line
2 Number of bins Upper tracks 2; Lower tracks 2
3 Container replacement time Approx. 25 seconds or user-specified
4 Power supply and electrical load 220V AC, single-phase max. 300 VA
5 Voltage and airflow 4~6 bar, up to 0.1 l/min
6 Board thickness Minimum 0.8 mm
7 Lift motor Servo motor
8 Push plate motor Blue stepping
9 Clamp frame cylinder Taiwan Airtac
10 Lifting screws TBI
11 Inductor Lawne
12 Operational type Kunlun Tongtai
13 Control mode Panasonic PLC of Japan
14 Conveying direction Left to right, right to left (optional)
15 Transmission height 900±20mm
16 The effective size of PCB (length * width) 100*50mm ~260*100mm
17 Transmission height 900±20mm
18 Dimensions (L*W*H) 1150*1020*1600mm
19 Container size (L*W*H) 260*58*144mm
20 Approximate weight (kg) Approx. 150kg
21 Docking AGV height The upper and lower magazine track ground clearance: 812, 534mm
22 Remark You can set the number of starting layers, the number of output PCBs, and the PCB spacing parameters
