Vertical Hot Air Curing Oven

Product number: KT-400/KT-280

Significantly to saving labor-compared to the offline curing oven, the machine has automatic entry and exit, completely eliminating the manual removal of the offline curing oven.
Improve the curing quality -compared to the offline curing furnace, without the manual handling of the product when opening and closing the furnace action, the furnace temperature is more stable, the product quality is better.
Significantly reduce the occupation of the ground-compared to the horizontal transport Mode of the tunnel furnace or the conventional SMT reflow oven, the vertical furnace footprint of the same capacity is reduced several times or even ten times.
Improve energy efficiency-Compared with the horizontal transport mode tunnel furnace or conventional SMT reflow oven, make full use of the basic principle of hot air upward movement, more fully utilized thermal energy.

Model	KT-400/KT-280	Note
Applicable production range	PCBA Curing production after product coating
Dimensions(mm)	2500(L)x1740(w)x2240(H) 2500(L)x1580(w)x2450(H)	The height and weight of the machine bed will increase according to the requirements of the custom layer
weight(Kg)	Approx. 1800/ 1650
Heating time	Approx.30minute
Temperature setting range	Room Temp.180℃
Temperature control accuracy	±1.0°C

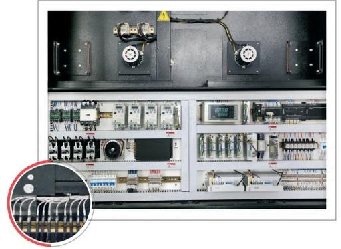

Control method	PID closed-loop control + SSR drive + touch screen
PCB board temperature distribution deviation	≤±3.0°C
Furnace time	According to product demand parameter setting
PCB maximum size (mm)	400(L)400(W) 300(L)280(W)	Small plates can be used by curing trays, non standard size can be Customized
Rail width adjustment range	100~400mm
Board space	PCB upper space =25.4mm plate thickness – under the component height	Can be customized with an integral multiple of 25.4 pallet spacing or other specifications of the chain, depending on the size of the chain, the board space will be different
Transmission height(mm)	900±20mm	Reference customer dispensing equipment
