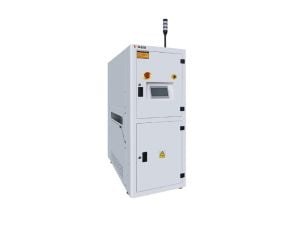

NG/OK Dual Buffer Stocker

Product number: ZCL300-DN

HMI operation system interface control operation which are very simple and convenient.
PLC control system,multiple electrical circuit protection design which are security and stability.
There are 2 boxes in the temporary storage area,and 20-25 pitches per box are available for stopping.
Integrate multiple functions,first-in,first-out,advanced-last-out,and direct-through NG/OK.
Servo positioning system,high positioning accuracy,fast lifting speed,high production efficiency,and large amount of storage.
Standard SMEMA signal communication.

Description	Can be used for NG screening after SMT inspection equipment
Description	Can be used to automatically collect AOI inspections NG/OK circuit boards to different bins
Board capacity	20-30pcs.Can be sed for multi-purpose selection of NG/Ok storage boards.
Maximum load	1.5kg/PCB
Cycle Time	About 12 seconds
Step selection	30、60mm or specified by customer
Power supply and electric load	220V(AC,SP)900VA max
Board thickness	Min. 0.6mm

Model	ZCL300-DN
Circuit board effective size(mm)	80(L)×50(W)-330(L ×300(W)
Transmission height(mm)	900±20(mm)
Dimensions	1500(L)×1500(W)×1760(H)
Cooling function	No
NG/OK function	Yes
Approximate weight (kg)	200(Kg)
