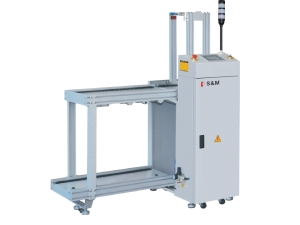

SL-3 Series Vertical Entry Loader

Product number: SL-3BM

It is used for sending out the direction perpendicular to the line body, effectively shortening the length of the line body;
SMT production line circuit board upper board device;
PLC control, color HMI operation system;
Stepping motor push plate structure ,pushing plate speed is adjustable;
Auxiliary positioning braking system, accurate positionging, fast lifting speed and high production efficiency;
Multiple electrical distributiong circuit protection, safe and reliable;
Sound and light alarm system, abnormal information text prompts, easy operation and maintenance;
Atandard SMEMA signal communication;
Optional AGV docking function.

Description	Used to automatically send out circuit boards to the production line
No.of magazine	Upper conveyor: 1nos.Lower conveyor:1nos.
Time for feed PCBs	Approx.6 seconds or specified by customer
Magazine change over time	Approx.35 seconds or specified by customer
Indexing pitch	10,20,30,40mm pitch or specified by customer
Power supply and electric load	220V (AC, SP) 300VA max
Air pressure and air flow	4-6bar, Up to 0.1
Thickness of PBCs	0.6mm min

size	M	L	LL	XL
Model	SL-3BM	SL-3BL	SL-3BLL	SL-3BXL
Circuit board effective size(mm)	80(L)×50(W)-330(L)×250(W)	80(L)×50(W)-460(L)×330(W)	80(L)×50(W)-510(L)×390(W)	80(L)×50(W)-510(L)×460(W)
Transmission height(mm)	900±20(mm)	900±20(mm)	900±20(mm)	900±20(mm)
Dimensions(mm)	960(L)×1280(W)×1200(H)	1170(L)×1560(W)×1200(H)	1320(L)×1620(W)×1200(H)	1320(L)×1690(W)×1200(H)
Magazine size(mm)	355(L)×320(W)×565(H)	460(L)×400(W)×565(H)	535(L)×460(W)×570(H)	535(L)×530(W)×570(H)
Common name of magazine	803#	806#	808#	309#
Weight(kg)	145(kg)	205(kg)	250(kg)	255(kg)
