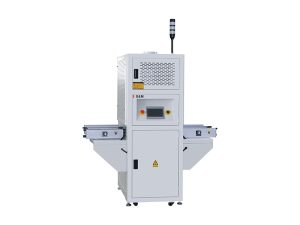

Heavy Automatic Loader

Product number: SL-650/ZL-650

SMT production line circuit board upper board device;
PLC control,color HMI operation system;
Stepping motor push plate structure,pushing plate speed is adjustable ·Auxiliary positioning braking system,accurate positioning,fast lifting;
speed and high production efficiency;
Multiple electrical distribution circuit protection,safe and reliable;
Sound and light alarm system,abnormal information text prompts,easy operation and maintenance;
Standard SMEMA signal communication Optional AGV docking function.

Description	For automated production line collection circuit board operations
No.of magazine	Upper conveyor:1nos.Lower conveyor:1nos.
Time for feed PCBs	Approx.6 seconds or specified by customer
Magazine change over time	Approx.35 seconds or specified by customer
Indexing pitch	10,20,30,40 mm pitch or specified by customer
Power supply and electric load	220V(AC,SP)800VA max
Air pressure and air flow	4~6bar, Up to 0.21/min
Thickness of PCBs	0.6mm min

Model	SL-650	ZL-650
Circuit board effective size(mm)	80(L)×50(W)-700(L)×650(W)	80(L)×50(W)-700(L)×650(W)
Transmission height(mm)	900±20(mm)	900±20(mm)
Dimensions(mm)	2010(L)×1300(W)×1760(H)	2910(L)×1300(W)×1760(H)
Dimensions of magazine(mm)	700(L)×700(W)×570(H)	700(L)×700(W)×570(H)
Weight(kg)	250(kg)	280(kg)
