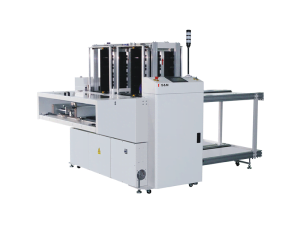

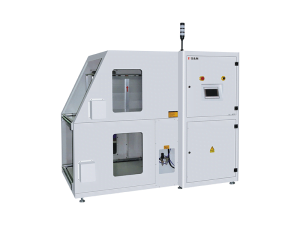

Dual Magazine Unloader

Product number: SLD-3BM

Top board device of SMT production line circuit board;
PLC control, color HMI operation system;
Stepping motor push plate structure, pushing plate speed is adjustable;
Auxiliary positioning braking system, accurate positioning, fast lifting speed and high production efficiency;
PLC control system, multiple electrical circuit protection design which are security and stability;
Sound and light alarm system, abnormal information text prompts, easy operation and maintenance;
Standard SMEMA signal communication;
Standard multiple pickup modes;
Optional AGV docking function.

Description	For automated production line collection circuit board operations
Time for feed PCBs	Approx.6 seconds or specified by customer
Magazine change over time	Approx.35seconds or specified
Indexing pitch	10,20,30,40 mm pitch or specified by customer
Power supply and electric load	220V(AC,SP)800VAmax
Air pressure and air flow	4-6bar,Up to 0.21/min
Thickness of PCBs	0.6mm min

Specifications & Parameters

Size		M	L	LL	XL
Model		SLD-3BM	SLD-3BL	SLD-3BLL	SLD-3BXL
Circuit board effective size(mm)		80(L)×50(W)- 460(L)×250(W)	80(L)×50(W)- 460(L)×330(W)	80(L)x500(W)- 510(L)×390(W)	80(L)×50(W)- 510(L)×460(W)
Transmission height(mm)		900±20(mm)	900±20(mm)	900±20(mm)	900±20(mm)
Dimensions(mm)		1370(L)×1360(W)×1220(H)	2100(L)×1520(W)×1220(H)	1870(L)×1660(W)×1220(H)	2580(L)×1800(W)×1220(H)
Common name of magazine		803#	806#	808#	809#
No. of magazine	Upper conveyor	1	2	1	2
No. of magazine	Lower conveyor	1	2	1	2
Weight(kg)		240(kg)	330(kg)	400(kg)	430(kg)
