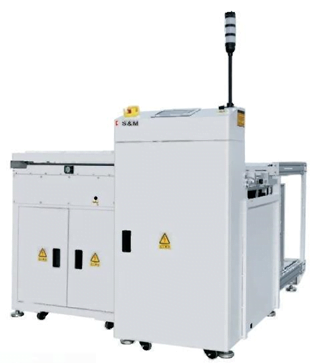

Buffer Loader/NG Stocker

Product number: SZL-3BM/3BL/3BLL/3BXL

A.I SMT production line dedicated automatic NG/OK Un-loader.
Integrated multiple functions, can be switched to Buffer, Loader, Unloader,NG Stocker.
Buffer can be divided into first-in first-out, advanced after selection using.
Color HMI operation system interface control operation, function switching which are simple and easy to understand.
PLC control system, multiple electrical circuit protection design which are security and stability;
Auxiliary positioning braking system, accurate positioning, fast lifting speed and high production efficiency.
Standard SMEMA signal communication.
Optional AGV docking function.

Model	SZL-3
Description	Can be used to automatically collect AOl inspection NG/OK circuit boards to different bins
	Can be used for automatic operation of the upper and lower circuit boards
	Can be used to buffer between SMT machines
No.of magazine	Upper conveyor:1nos.lower conveyor:1 nos.
Time for feed PCBs	Approx.6 seconds or specified by customer
Magazine change over time	Approx.35 seconds or specified by customer
Indexing pitch	10,20,30,40 mm pitch or specified by customer
Power supply and electric load	220V (AC, SP)300VAmax
Air pressure and air flow	4~6bar, Up to 10 V min
Thickness of PBCs	0.6mm min

Size	M	L	LL	XL
Model	SZL-3BM	SZL-3BL	SZL-3BLL	SZL-3BXL
Circuit board effective size(mm)	80(L)×80W-330(L)×2500w)	80(L)×80(W)-460(L×330W)	80(L)×80W)-510(L)×390w	80(L)×80(W)-510(L)×460w
Transmission height(mm)	900±20(mm)	o⁰0+20(mm	900±20(mm)	900±20(mm)
Dimensions(mm)	1150(L)×1250(W)×1200(H)	1260(L)×1540(W)×1200(H)	1440(L)×1620(W)×1200(H)	1440(L)×1690(W)×1200(H)
Magazine size(mm)	355(L)×320(W)×565(H)	460(L)×400(W)×565(H)	535(L)×460(W)×570(H)	535(L)×530(W)×570(H)
Common name of magazine	803#	806#	808#	809#
Weight(kg)	220(kg)	245(kg)	250(kg)	255(kg)
