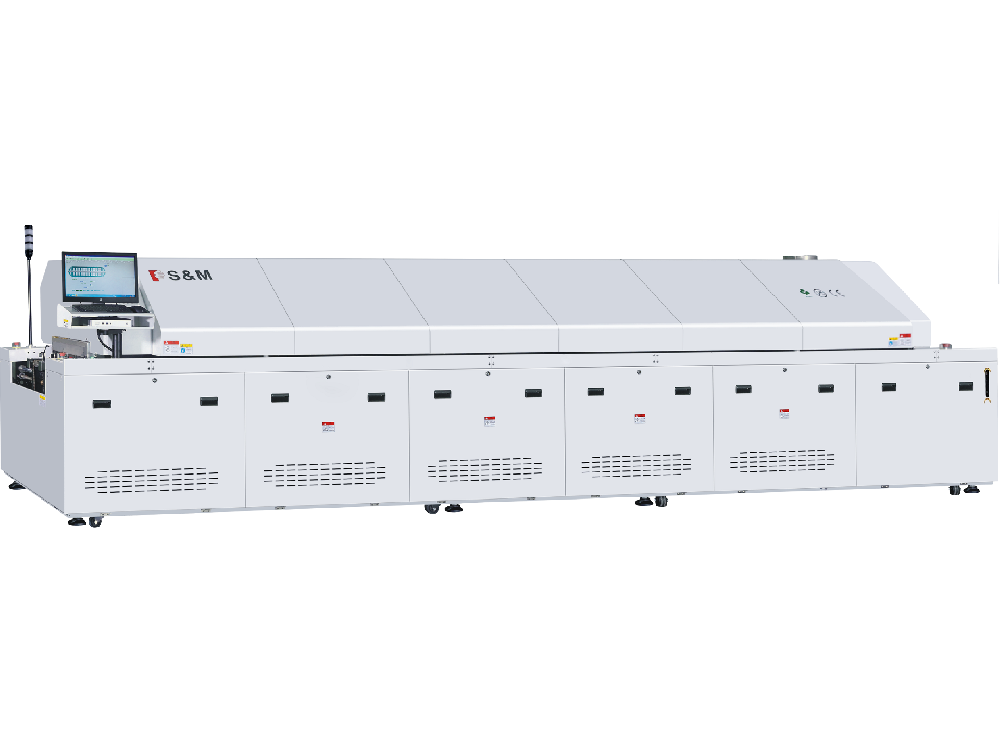

VS/DS Series Lead-free Hot Air Reflow Oven

Product model: VS-1003

  • Windows10 operating system, can realize the free switching of the operation interface in Chinese and English.
  • Siemens PLC+PID closed-loop control to achieve high prectise temperature control and repeatable profilies.
  • Modular design, convenient and fast maintenance, reducing maintenance time and cost.
  • The rail surface is treated with hardening process to make it more stable.
  • Sound and light alarm and information prompt function with various faults, including temperature deviation, speed deviation, detention board and drop board, wind fault and error operation, etc.
  • The new gas management system can make the hot gas exchange efficiency in the furnace higher, to obtain better thermal compensation and thermal efficiency, and fully meet the requirements of various lead-free soldering processes.

Specifications

Optional

Central support system(Optional)
Furnace temperature real-time monitoring system(Optional)

VS/DS Series Lead-free Hot Air Rellow Oven Technical Parameters
Model VS-0802/DS-800
VS-0802-N
VS-1003/DS-1000
VS-1003-N
VS-1204/DS-1200
VS-1204-N
VS-0802D/DS-800D
VS-0802D-N
VS-1003D/DS-1000D
VS-1003D-N
VS-1204D/DS-1200D
VS-1204D-N
VS-0802-X
VS-0802-NX
VS-1003-X
VS-1003-NX
VS-1204-X
VS-1204-NX
VS-0802D-X
VS-0802D-NX
VS-1003D-X
VS-1003D-NX
VS-1204D-X
VS-1204D-NX
Machine Specifications
Size:L*W*H(mm) 5300*1420*1520 6567*1420*1520 7733*1420*1520 5300*1640*1520 6567*1640*1520 7733*1640*1520
Weight(Kg) 2650/2950 2850/3150 3050/3350 2950/3250 3150/3450 3350/3650
Temperature zone Top 8.Bottom 8/

length 4362

Top 10.Bottom 10/

length 5463

Top 12.Bottom 12/

length 6521

Top 8.Bottom 8/

length 4362

Top 10. Bottom 10/

length 5463

Top 12.Bottom 12/

length 6521

Number of cold zones Top2. Bottom 0/
Top2. Bottom 2
Top3.Bottom 0/
Top3. Bottom 3
Top4.Bottom 0/
Top4.Bottom 4
Top2.Bottom /
Top2. Bottom 2
Top3. Bottom 0/
1bp3. Bottom 3
Top4.Bottom 0/

Top4.Bottom 4

Length of cold zone 685mm 1040mm 1430mm 685mm 1040mm 1430mm
Heating zone rectifying plate structure Thick aluminum plate
cooling method Greenhouse air cooling/cold water cooling
Control System
Power Requirements 3Ф 380V 50Hz
Startup,normal operating power 30KW 9KW
32KW 10KW
36KW 10KW
38KW 11KW
40KW 11KW
42KW 12KW
30KW 11KW
32KW 12KW
36KW 12.5KW
35KW 13.5KW
40KW 14KW
42KW 15KW
Heating time About 25Min
Temperature accuracy ±1°C
Temperature control method PID closed-loop control PID closed-loop control + SSR drive
PCB lateral temperature difference ±1.5 °C
Process parameter storage Automatically save various operations and alarm records + manual operation to save various process parameter settings
Abnormal alarm Standard temperature deviation,speed deviation and air conditioning fault,sound and light alarm of mains power failure
Off board alarm Standard of-board alarm function
Transportation System
Rail structure Overall two-stage
Chain structure 35B single buckle with rib andpin nickel-plated manganese steel chain
Maximum plate width 400mm (Optional 610mm) 2-280mm (Optional 2-300mm)
Rail width adjustment range 50-400mm (Optional 50-610mm) 50-280mm (Optional 50-300mm)
Transport direction Left→right can be selected as right→left
Railfixed form Front fixed,optional rear fixed No.1 rail and No.4 rail are fixed, Optional No.1 rail is fixed, No2.,No.4 rails are adjustable
Transportation speed 200 〜2000mm/min
Transport plate height 900±15mm
Automatic lubrication system Standard lubricant automatic filling and manual filing function
Nitrogen system
Nitrogen consumption 20-25m³/ hr@300-1000ppm 25-30m³/hr@300-1000ppm

Product Features

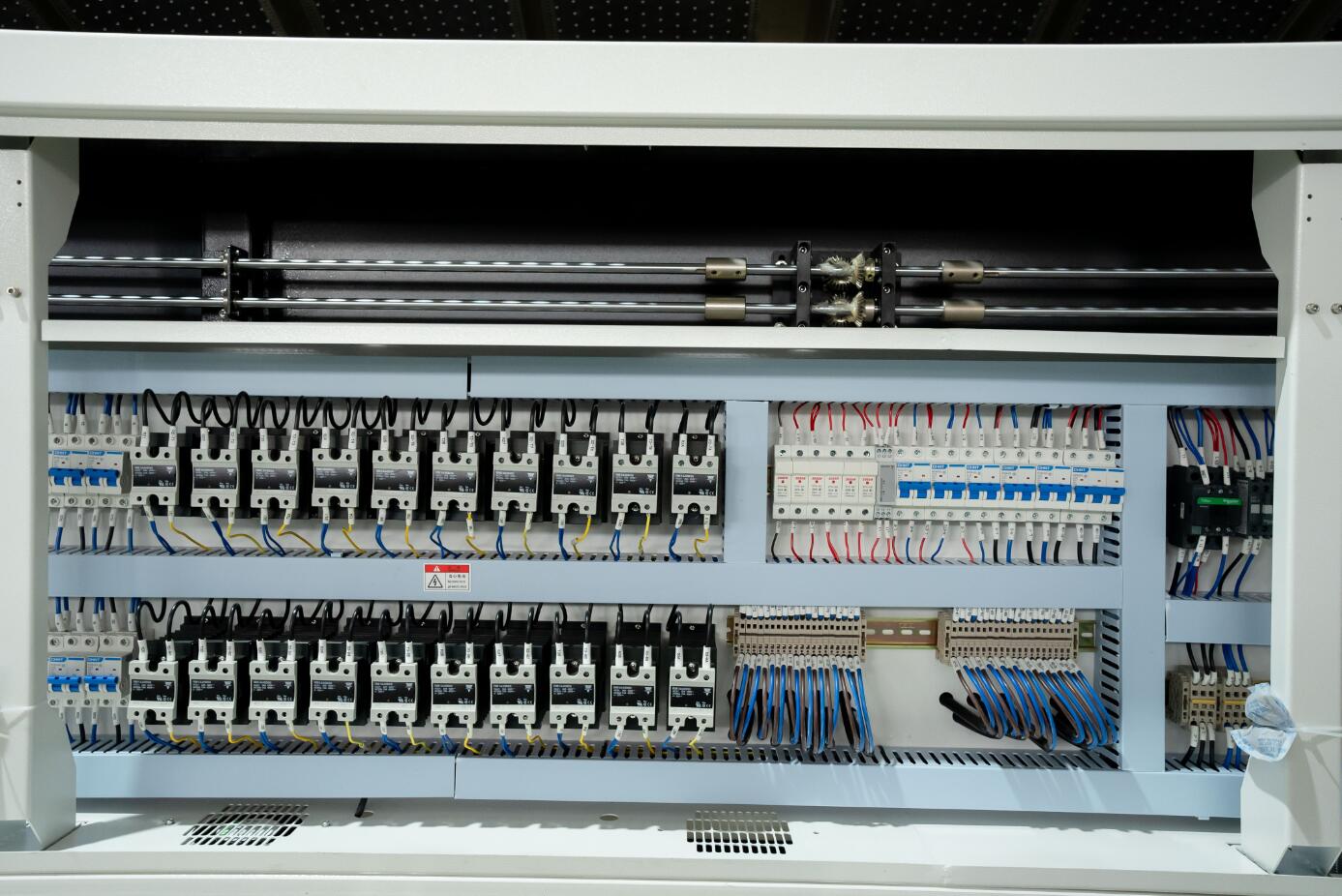

As you can see the concise control panel and centralized power switch which is bigger cover for opening and closing. The rail adjustment is easy and convenient in one place as well. Automatic oiling time and times are controlled by computer.
The guide rail adopts two-stage multi-poit suspension structure, It is very light and flexble.
Controlled by Siemens PLC. the performance is stable and reliable, and the repeatability is high. The other key control components are imported brands, stable pertormance and durable.The upper and lower heating zones are equipped with independent frequency converters to facilitate customers to achieve different production processes
