Optional
Central support system（Optional）
Furnace temperature real-time monitoring system（Optional）
| VS Series Lead-free Nitrogen Hot Air Reflow Oven Technical Parameters | ||||||
| Model | VS-0802/DS-800 VS-0802-N |
VS-1003/DS-1000 VS-1003-N |
VS-1204/DS-1200 VS-1204-N |
VS-0802D/DS-800D VS-0802D-N |
VS-1003D/DS-1000D VS-1003D-N |
VS-1204D/DS-1200D VS-1204D-N |
| VS-0802-X VS-0802-NX |
VS-1003-X VS-1003-NX |
VS-1204-X VS-1204-NX |
VS-0802D-X VS-0802D-NX |
VS-1003D-X VS-1003D-NX |
VS-1204D-X VS-1204D-NX |
|
| Machine Specifications | ||||||
| Size:L*W*H(mm) | 5300*1420*1520 | 6567*1420*1520 | 7733*1420*1520 | 5300*1640*1520 | 6567*1640*1520 | 7733*1640*1520 |
| Weight(Kg) | 2650/2950 | 2850/3150 | 3050/3350 | 2950/3250 | 3150/3450 | 3350/3650 |
| Temperature zone | Top 8.Bottom 8/
length 4362 |
Top 10.Bottom 10/
length 5463 |
Top 12.Bottom 12/
length 6521 |
Top 8.Bottom 8/
length 4362 |
Top 10. Bottom 10/
length 5463 |
Top 12.Bottom 12/
length 6521 |
| Number of cold zones | Top2. Bottom 0/ Top2. Bottom 2 |
Top3.Bottom 0/ Top3. Bottom 3 |
Top4.Bottom 0/ Top4.Bottom 4 |
Top2.Bottom / Top2. Bottom 2 |
Top3. Bottom 0/ 1bp3. Bottom 3 |
Top4.Bottom 0/
Top4.Bottom 4 |
| Length of cold zone | 685mm | 1040mm | 1430mm | 685mm | 1040mm | 1430mm |

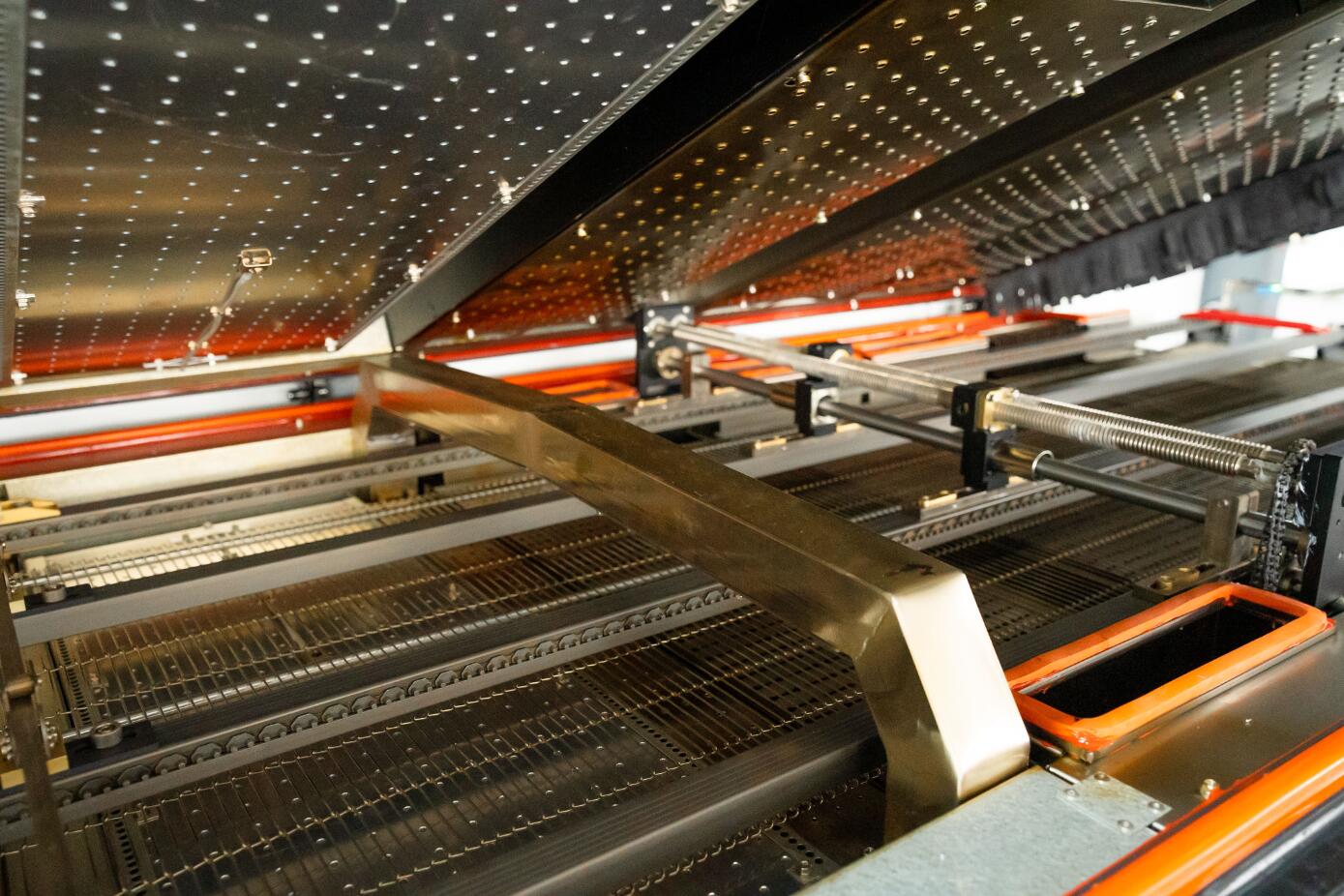

| Heating zone rectifying plate structure | Thick aluminum plate | |||||
| cooling method | Greenhouse air cooling/cold water cooling | |||||

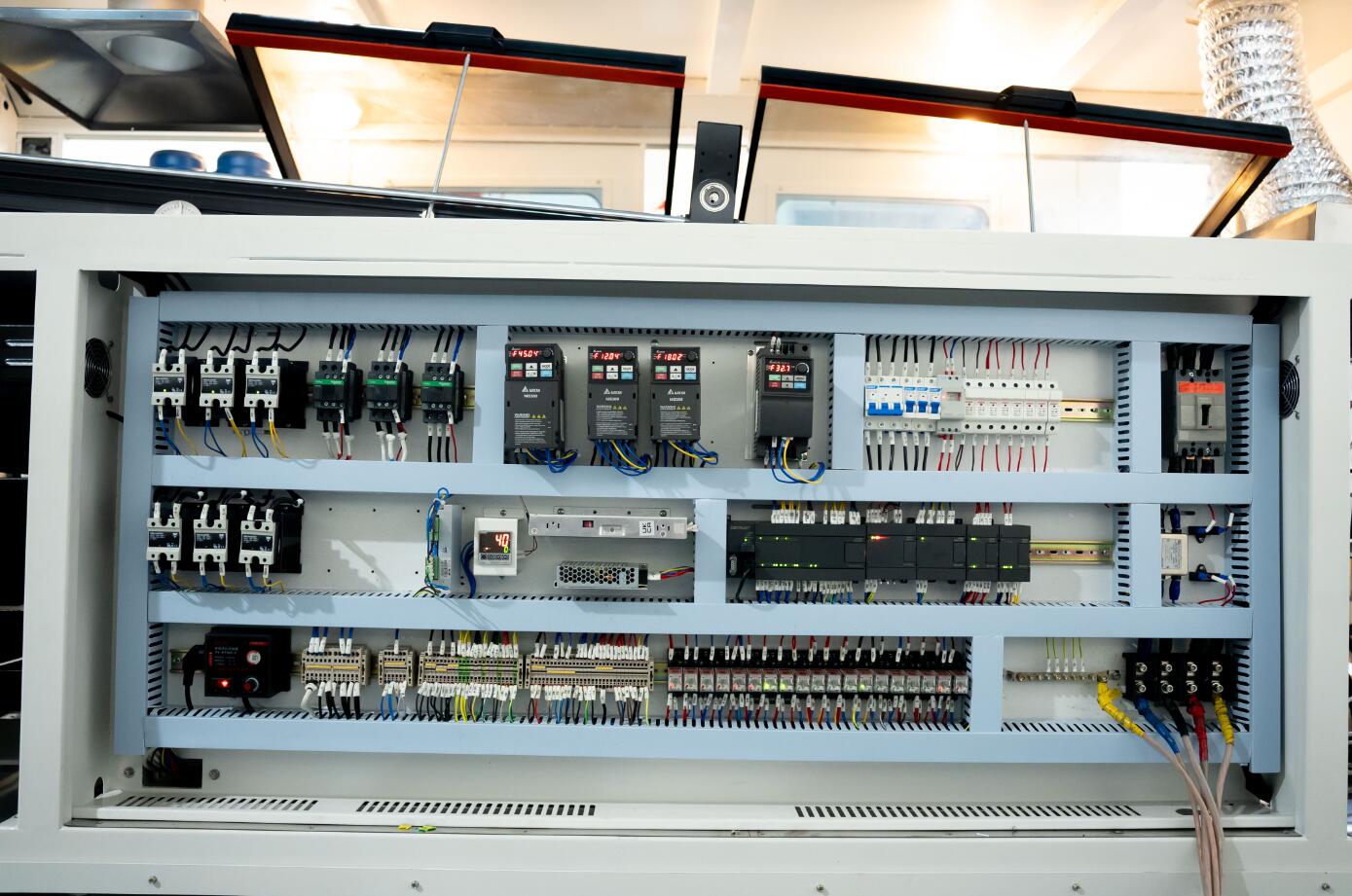

| Control System | ||||||
| Power Requirements | 3Ф 380V 50Hz | |||||
| Startup,normal operating power | 30KW 9KW 32KW 10KW |
36KW 10KW 38KW 11KW |
40KW 11KW 42KW 12KW |
30KW 11KW 32KW 12KW |
36KW 12.5KW 35KW 13.5KW |
40KW 14KW 42KW 15KW |
| Heating time | About 25Min | |||||
| Temperature accuracy | ±1°C | |||||
| Temperature control method | PID closed-loop control PID closed-loop control + SSR drive | |||||
| PCB lateral temperature difference | ±1.5 °C | |||||
| Process parameter storage | Automatically save various operations and alarm records + manual operation to save various process parameter settings | |||||
| Abnormal alarm | Standard temperature deviation,speed deviation and air conditioning fault,sound and light alarm of mains power failure | |||||
| Off board alarm | Standard of-board alarm function | |||||
| Transportation System | ||||||
| Rail structure | Overall two-stage | |||||

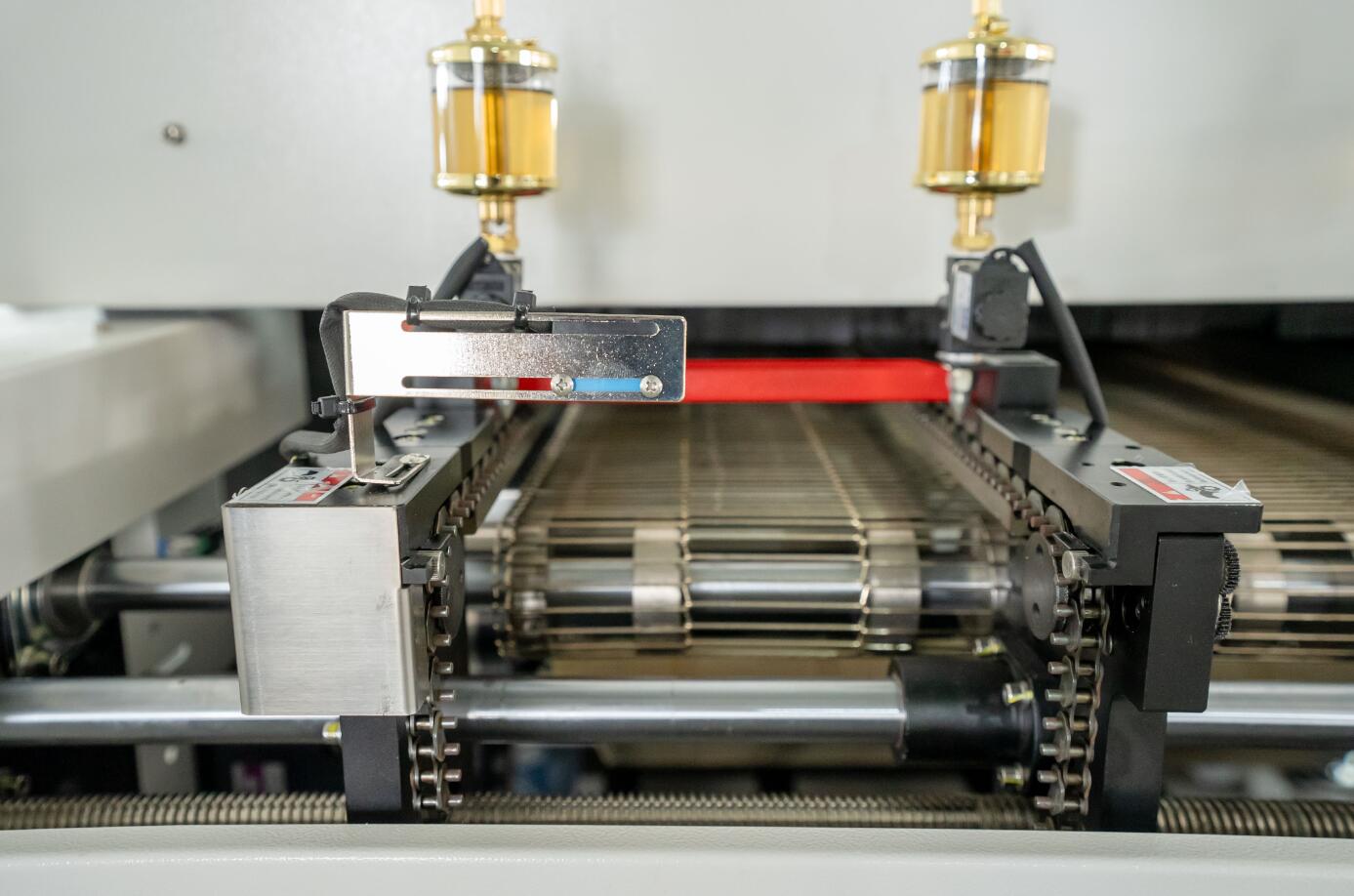

| Chain structure | 35B single buckle with rib andpin nickel-plated manganese steel chain | |||||
| Maximum plate width | 400mm (Optional 610mm) | 2-280mm (Optional 2-300mm) | ||||
| Rail width adjustment range | 50-400mm (Optional 50-610mm) | 50-280mm (Optional 50-300mm) | ||||
| Transport direction | Left→right can be selected as right→left | |||||
| Railfixed form | Front fixed,optional rear fixed | No.1 rail and No.4 rail are fixed, Optional No.1 rail is fixed, No2.,No.4 rails are adjustable | ||||
| Transportation speed | 200 〜2000mm/min | |||||
| Transport plate height | 900±15mm | |||||
| Automatic lubrication system | Standard lubricant automatic filling and manual filing function | |||||
| Nitrogen system | ||||||
| Nitrogen consumption | 20-25m³/ hr@300-1000ppm | 25-30m³/hr@300-1000ppm | ||||
