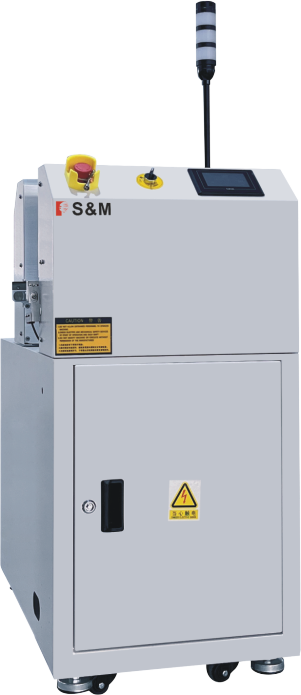

The Induction of Automatic Drop Loader
The automatic drop-type loader is a PCB automatic feeding device used in the starting section of the SMT production line. Its core feature is to use gravity to separate the stacked PCBs piece by piece and transfer them to the production line.
Functional Features
- It adopts PLC automatic control and touchscreen operation.
- Sheet metal weighted structure, stable and reliable.
- Pass-through and drop-through modes are available.
- The use of titanium steel push plate blade, strong elasticity, not easy to deform.
Operation Process
- Neatly stack the bare PCBA boards in the feeding area above the track.
- The cylinder drives the flapper mechanism to alternately flap the flappers left and right.
- Make the bottom PCBA board in the feeding area fall onto the track.
- The PCBA board is transported to the back-end process via tracks.
Equipment Considerations
- It is strictly forbidden to put hands and heads into the machine during the operation of the equipment, which may cause accidents or injuries.
- In the automatic state of the equipment, it is strictly forbidden to maintain, manually pick up, and repair the equipment, which may cause accidents or injuries and product damage; Must be completed in a shutdown or power-off state.
- It is strictly forbidden to touch the moving parts of the equipment under working conditions, which may cause pinching.
- It is strictly forbidden to change the electric control box of the equipment, which may cause electric shock and malfunction.
- Equipment repair and maintenance must be completed by professionals or qualified personnel.
- The equipment is strictly forbidden to hit, causing damage at your own risk.
- The equipment should be installed in an environment with low vibration, no dust, no electromagnetic wave interference, and no corrosive objects, with a temperature of less than 55 degrees and a humidity of less than 90%.
- Please do not use sharp materials or vigorously to operate the touch screen, (such as screwdrivers, nails, etc.) otherwise it will cause damage to the surface protective film of the touch screen, which may cause damage to the touch screen.
- It is forbidden to run automatically if the insert board does not reach the sensor, which may cause product breakage and equipment damage.
Equipment Repair and Maintenance
- Timing belt: Check whether the belt is aging.
- Inspection of each photoelectric sensor: Dust cleaning, and sensitivity check.
- Test each feature manually: Touch screen manual screen.
- Transmission components: Check whether there is any abnormal noise, screw tightening.
- Inspection in the electric control box: Dust cleaning
Company Overview

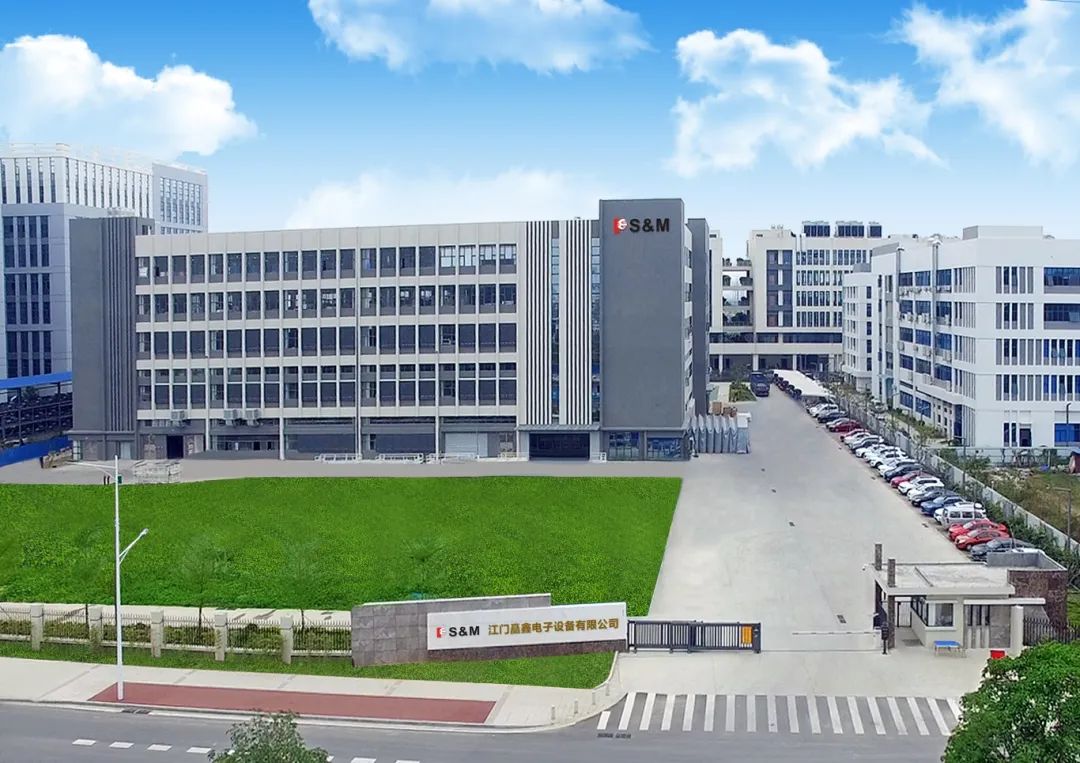

Shenzhen Chuxin Electronic Equipment Co., Ltd.was founded in 1997, the registered trademark: is S&M, is a national high-tech enterprise within a dependent industrial park and is committed to becoming the leader of the electronic component surface bonding welding equipment and transmission equipment industry. The product line summarizes the research and development and manufacturing of electronic components surface adhesive welding reflow welding, horizontal and vertical curing furnaces, perforated welding wave soldering, selective wave soldering, SMT transmission equipment, and customized automation equipment.
