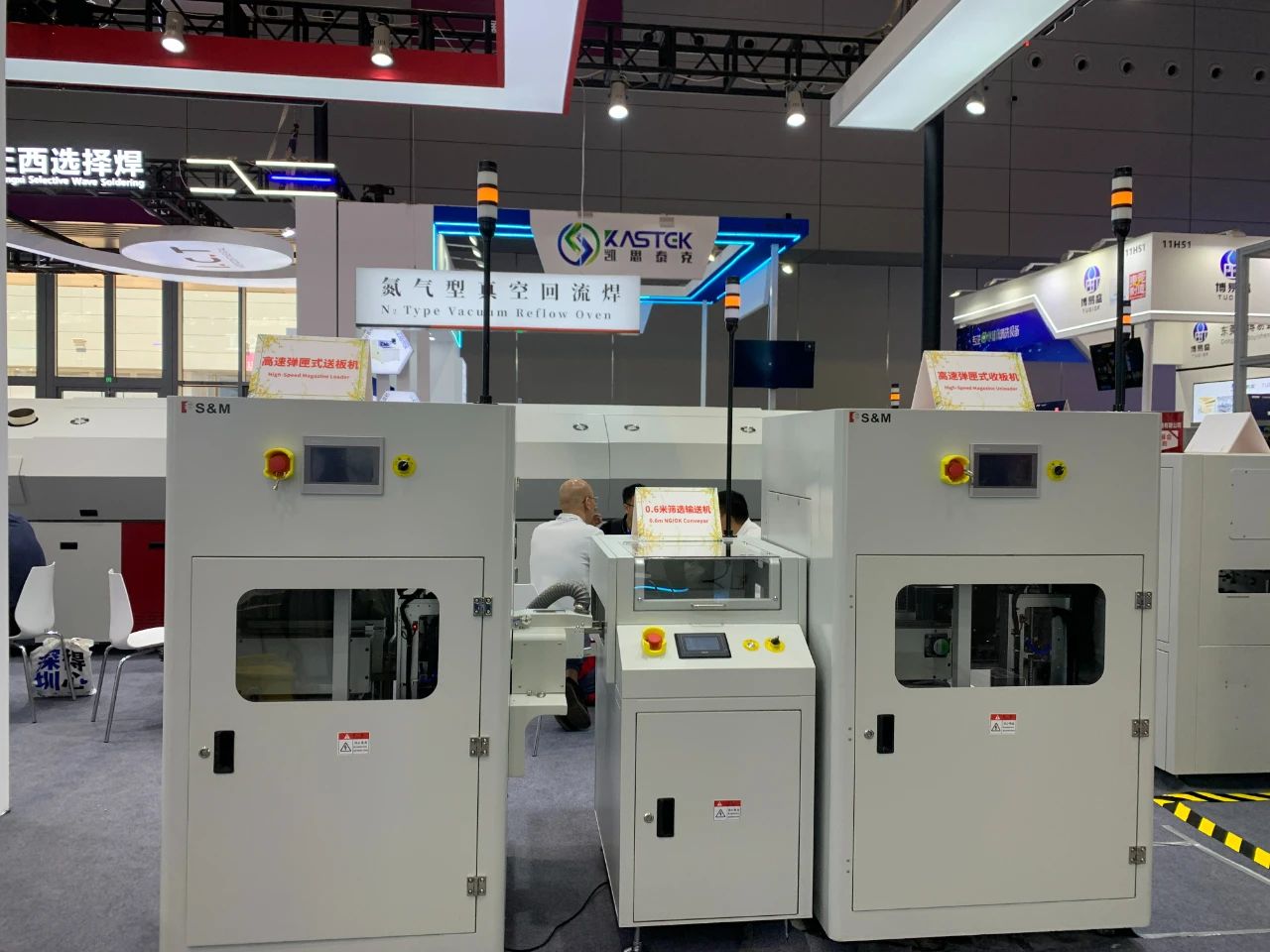

A high-speed magazine loader is an automated device used in SMT production lines. It is responsible for taking printed circuit boards (PCBs) out of the magazine one by one and feeding them to the next device in the production line quickly and continuously. It is one of the starting devices in the SMT production line, and its main function is to realize automated and efficient PCB supply.
High-speed Magazine Loader Feature：
The board loading device of the SMT production line circuit board.
PLC control, color human-machine interface operation.
Adopting a stepper motor push plate structure, the push plate force and speed are adjustable.
Servo lifting system, accurate positioning, fast lifting speed, high production efficiency.
Multiple electrical distribution circuit protection is safe and reliable.
The sound and light alarm system has an abnormal information text prompt, and it is easy to operate and maintain.
Standard SMEMA signal communication method.
Equipment Operation Process(Loader):
1. Manually place the full magazine on the lower magazine track.
2. Lift XZ to clamp the empty magazine and move it to the board transport track.
3. The push plate assembly pushes the PCB on the track to the exit transition track.
4. After the full magazine has unloaded the PCB, the empty magazine comes out from the upper layer.
High-speed Magazine Unloader Definition
A high-speed magazine unloader is an automated equipment used in the electronics manufacturing industry. It is mainly responsible for efficiently collecting processed PCBs in the SMT production line. It uses a magazine-type storage method to quickly and stably store PCB boards in an orderly manner, ensuring the continuity and smoothness of the production process.
High-speed Magazine Unloader Feature：
The board unloading device of the SMT production line circuit board.
PLC control, color human-machine interface operation.
The push plate force and speed can be adjusted by adopting a stepper motor push plate structure.
Servo lifting system, accurate positioning, fast lifting speed, high production efficiency.
Multiple electrical distribution circuit protection, safe and reliable.
Sound and light alarm system, abnormal information text prompt, simple operation and maintenance.
Standard SMEMA signal communication method.
Equipment Operation Process(Unloader):
1. Manually place the magazine on the upper magazine track.
2. Lifting XZ clamps the empty magazine and moves it to the transport plate track.
3. The push plate assembly pushes the PCB board on the track to the empty magazine.
4. After the empty magazine is filled with PCB boards, the full magazine comes out from the lower layer.
Application Scenario:
1. Semiconductors: Control chip, servo motor driver chip, image recognition chip.
2. Consumer electronics: such as processors, image sensors, memory chips (RAM/ROM), power management chips, etc.
3. Automotive electronics: Sensors (radar, lidar, cameras)
